Solida/Cutter 125 GR 230 V MA
Solida/Cutter 125 GR 230 V MA
Product number:
19034
Solida/Cutter 125 GR 230 V MA
Product number:
19034
- Stainless steel submersible waste water pump with cutting system

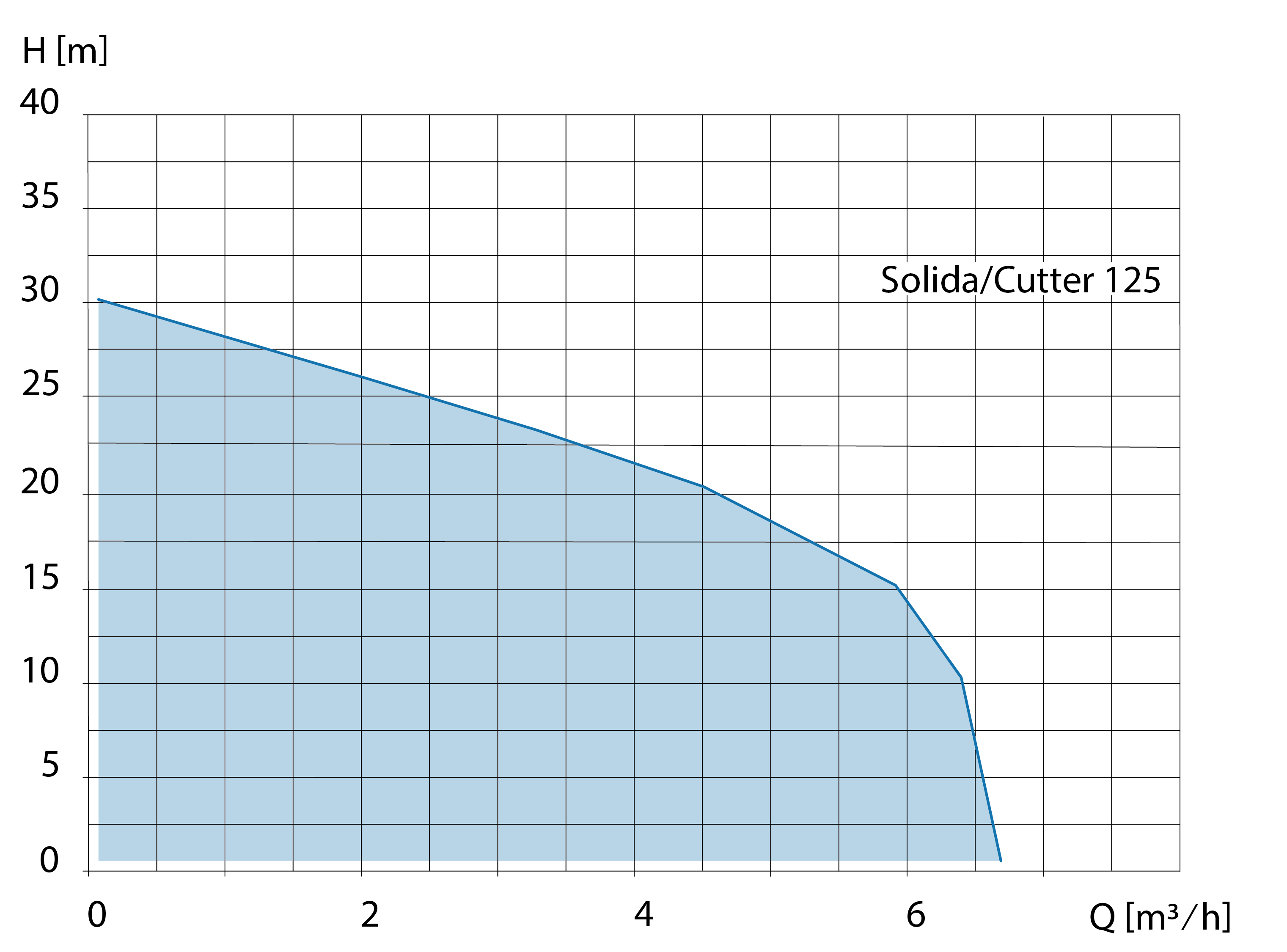

- Max. flow rate: 6,6 m³/h
- Max. head: 30,0 m
- Input power P1: 1.800 W
- Output power P2: 1.200 W
- Pressure outlet: 1 1/2" internal thread
Model
- submersible motor pump with cutter for waste water
- optionally with float switch (A) for automatic operation and dry-running protection or 3-phase current
- including cable H07 RN-F, 1~230V, 10m long
- start-up box with capacitor and thermal overload protection
- immersion depth: Max. 20 m
Application
- drainage of cesspits (in all those places, where explosion protection is not required)
- pressurised drainage
- aeces-containing waste water (whereever explosion protection is not required)
- drainage of swimming pools, soakaways etc.
- lowering of groundwater level and drainage Manufacturing and building services engineering
- suited for contaminated water, also with fibrous solids
| Application: | Disposal |
|---|---|
| Features: | mit Schwimmerschalter |
| Frequency: | 50 |
| Head up to [m]: | 30.0 |
| Installation location: | outside buildings, portable, pump sump |
| Max. temperature [°C]: | 35 |
| Nominal current [A]: | 6.6, 9.2 |
| Packing (WxHxL): | 180 x 260 x 540 |
| Power P1 [W]: | 1180 |
| Pumped medium: | sewage containing faeces, waste water |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
