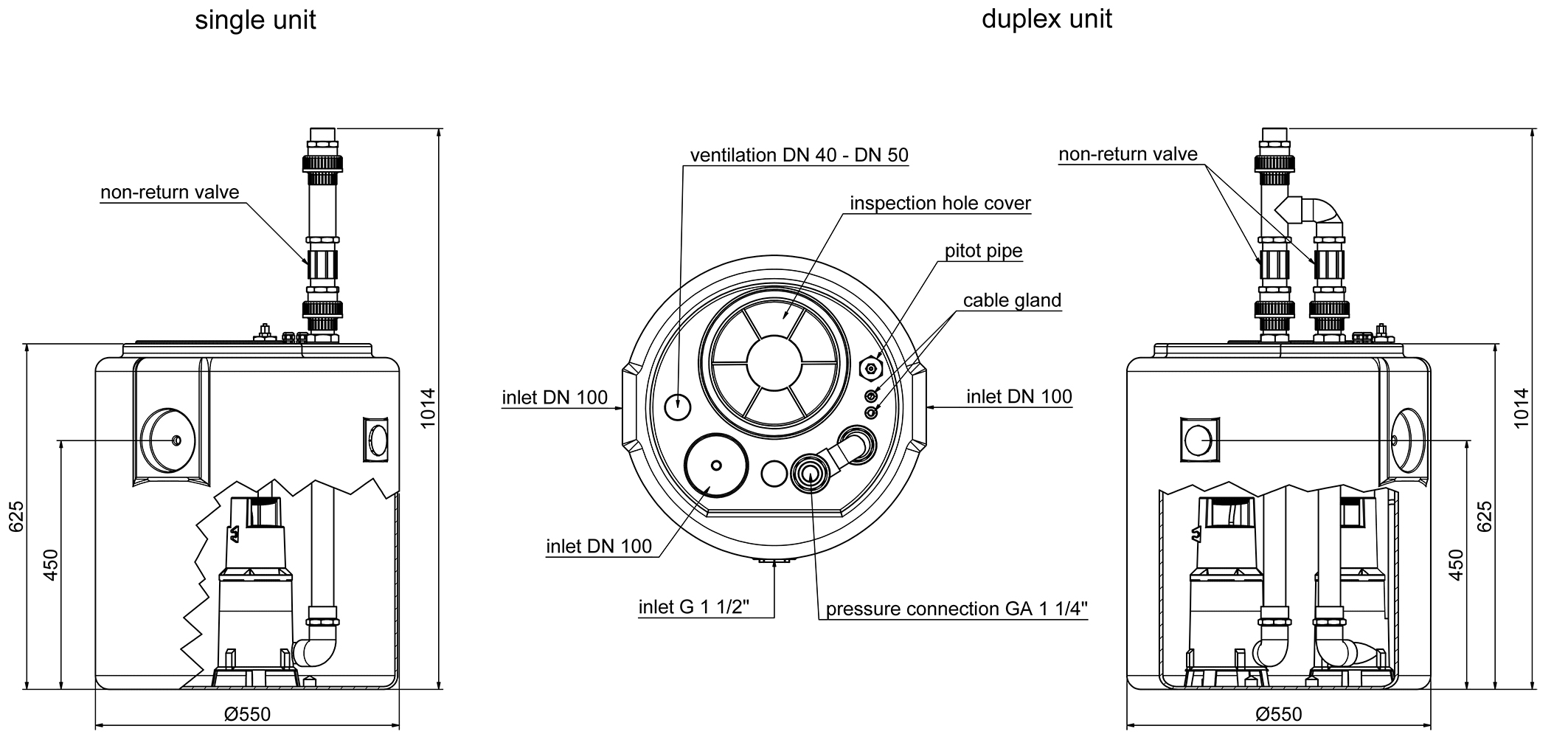

SWH 500-F simplex and duplex version for use behind grease separators
SWH 500-F simplex and duplex version for use behind grease separators
Product number:
17454
SWH 500-F simplex and duplex version for use behind grease separators
Product number:
17454
- Waste water lifting unit with built-in plastic submersible pump(s) Z-PK for use behind grease separators
- Max. flow rate: 7,0 m³/h
- Ma. head: 7,5 m
- Input power P1: 300 W
- Output power P2: 130 W
- Solids handling: 10 mm
- Pressure outlet: 1 1/4" internal thread
Model
- polyethylene container with 135 litres capacity and up to 75 litres switching volume
- with submersible waste water pump ZPK with float switch
- motor housing and shaft made of stainless steel, suction strainer, impeller and pump housing made of polypropylene
- piping made of PVC with external non-return valves and pressure outlet 1 ¼“ FPT
- operation temperature 40°C (short-term 90°C)
- protection grade IP 57 - temporary submersible
Application
- as lifting unit for grease separators
- pumping of domestic waste water from washing machines, showers, washbasins etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled ready for connection with 3 m power cable and plug
- pressure outlet incl. non-return valve(s) and gate valve
- incl. float switch
| Application: | Disposal |
|---|---|
| Features: | mit Schwimmerschalter |
| Frequency: | 50 |
| Head up to [m]: | 7.0 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 7.5 |
| Max. temperature [°C]: | 40 (kurzzeitig 90) |
| Nominal current [A]: | 1.3 |
| Packing (WxHxL): | 580 x 600 x 790 |
| Power P1 [W]: | 300 |
| Power P2 [W]: | 130 |
| Pumped medium: | waste water |
| Solids handling [mm]: | 5 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 10 |
