SWH 100
SWH 100
Product number:
11463
SWH 100
Product number:
11463
- Waste water lifting unit
- Max. flow rate: 8,0 m³/h
- Max. head: 6,0 m
- Input power P1: 300 W
- Output power P2: 130 W
- Solids handling: 10 mm
- Pressure outlet: 1 1/4" IT
Model
- pre-assembled ready for connection - easy installation
- polypropylene container with 20 litres capacity and up to 10 litres
- switching volume switching device integrated in lid with audible high water alarm signal
- potential-free contact for external alarm or washing machine stop
- pump fixed on lid for easy cleaning and maintenance

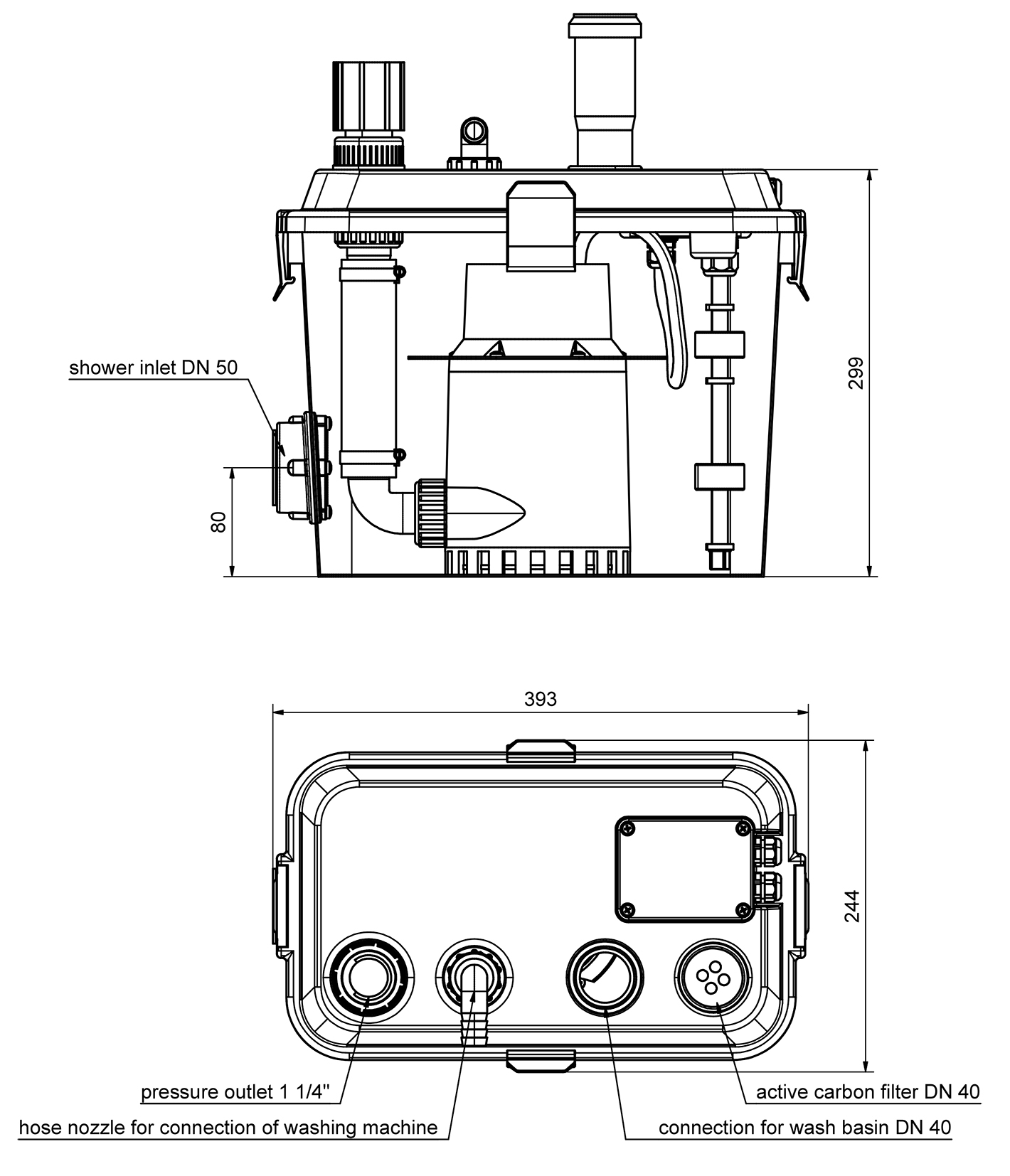

- prepared shower inlet DN 50 usable on both sides (container bottom edge til middle of shower inlet only 80 mm)
- operation temperature 40°C (short-term 90°C)
- pressure outlet 1 ¼“ FPT with integrated non-return valve
- active carbon filter for container ventilation
- protection grade IP 57 - temporary submersible
Application
- pumping of domestic waste water from washing machines, showers, washbasins etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled ready for connection with 1,5 m power cable and plug
| Application: | Disposal |
|---|---|
| Features: | Reedkontakt |
| Frequency: | 50 |
| Head up to [m]: | 6.0 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 8.0 |
| Max. temperature [°C]: | 40 (kurzzeitig 90) |
| Nominal current [A]: | 1.3 |
| Packing (WxHxL): | 245 x 400 x 405 |
| Power P1 [W]: | 300 |
| Power P2 [W]: | 130 |
| Pumped medium: | waste water |
| Solids handling [mm]: | 10 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 5 |
