HomeBox Eco
HomeBox Eco
Product number:
24373
HomeBox Eco
Product number:
24373
- Multistage centrifugal pump with a permanent magnet motor (IE5) and frequency control for pressure boosting and stabilization
- Max. flow rate: 5.2 m³/h

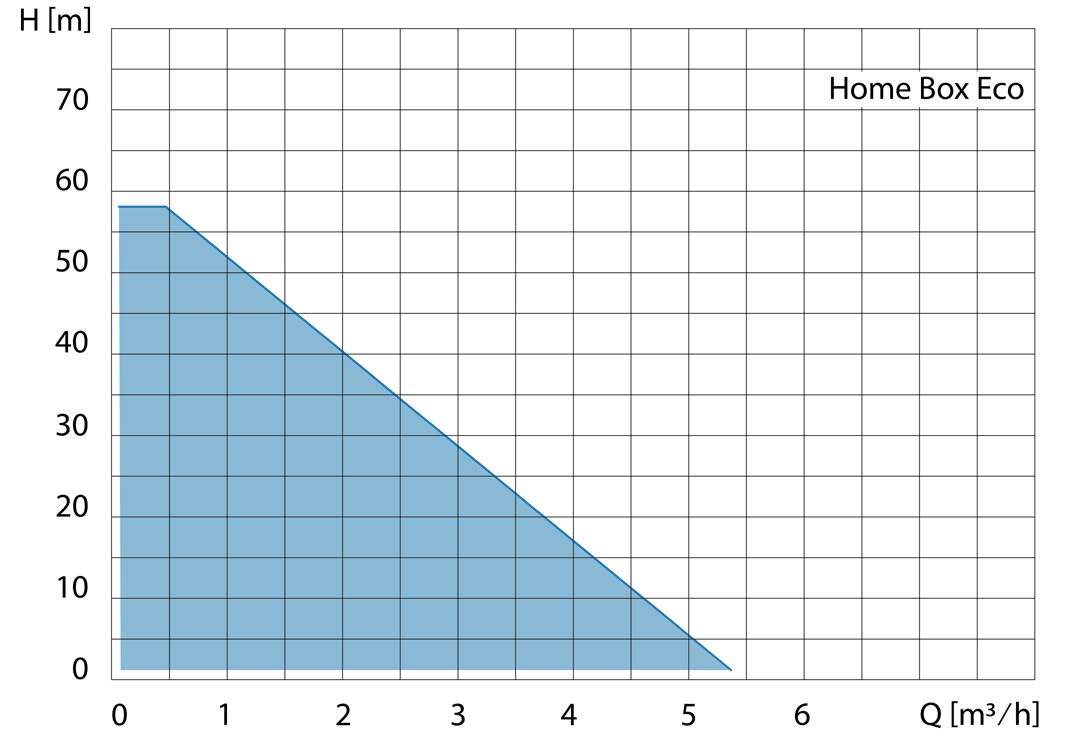

- Max. head: 56.0 m
- Input power P1: 750 W
- Output power P2: 600 W
- Pressure outlet: RP1
Specification:
- Multistage centrifugal pump with a permanent magnet motor (IE5) and frequency control for pressure boosting
- Fully integrated system for reliable pressure boosting in residential applications
- Automatic operation adjustment based on water demand
- Adjustable pressure: 1.5 to 5.5 bar (max. operating pressure 10 bar)
- Built-in 0.3-liter expansion vessel for pressure regulation and reduction of pressure surges
- Sound-absorbing housing <50 dB
- Motor winding with built-in thermal protection
- Integrated check valve on both suction and pressure sides
- Easy operation via LCD display
- Integrated dry-run protection
- IP56 protection class: Dust-tight and protected against powerful water jets
Applications:
- Ensuring constant water pressure throughout the house
- Single-family and multi-family homes, especially in cases of insufficient pressure from the public water supply
- Improving water pressure at all withdrawal points, such as showers, faucets, and household appliances
- Garden and lawn irrigation systems
- Pump with a 1.35 m power cable and Schuko plug
| Application: | Supply |
|---|---|
| Features: | with expansion vessel 0.3 l |
| Frequency: | 50/60 |
| Head up to [m]: | 56.0 |
| Installation location: | inside buildings, outside buildings |
| Max. flow rate [m³/h]: | 5.2 |
| Max. temperature [°C]: | 75 |
| Nominal current [A]: | 3.1 |

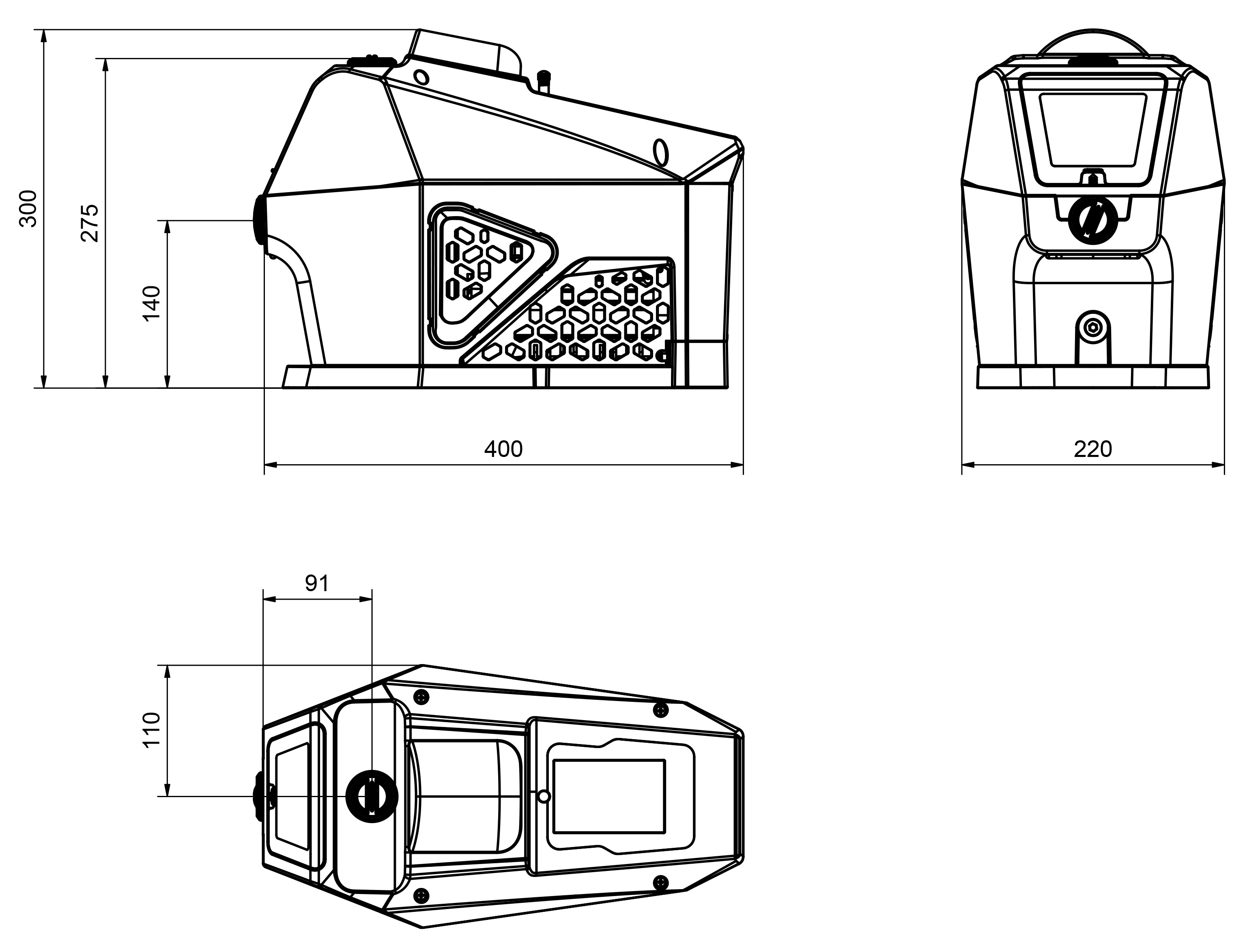

| Packing (WxHxL): | 260 x 370x 450 |
| Power P1 [W]: | 750 |
| Power P2 [W]: | 600 |
| Pumped medium: | Trinkwasser, clear water, rainwater |
| Voltage [V]: | 230 |
| C [µF]: | 220 |
