Garden 1000M 230V
Garden 1000M 230V
Product number:
18562
Garden 1000M 230V
Product number:
18562
- Self-priming, single-stage centrifugal pump with built-in injector

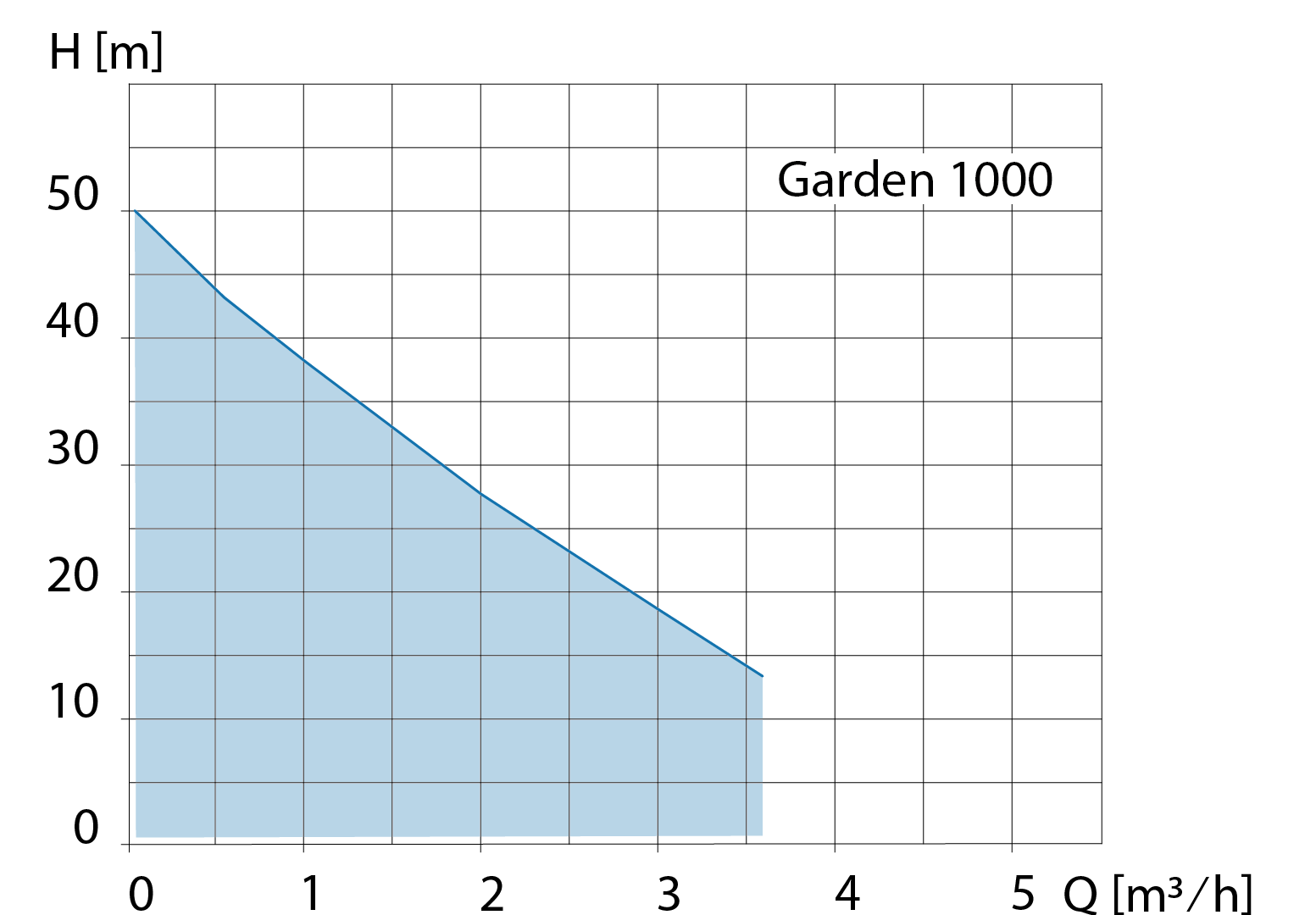

- Max. flow rate: 3,6 m³/h
- Max. head: 50,0 m
- Input power P1: 1.000 W
- Output power P2: 750 W
- Pressure outlet: 1" Internal thread
Model
- self-priming electric centrifugal pump with built-in injector, capable of pumping gases dissolved in water during suction
- with carrying handle
- self-priming up to 8 meters
- smooth-running suction and pressure ports, internal thread (1")
- diffuser and injector made of thermoplastic material, suitable for drinking water
- filling/drain screw made of stainless steel
Applications
- water supply in building services
- smaller irrigation systems wash stations transferring from tanks, etc.
- for pumping clear water without aggressive and abrasive components
- garden irrigation
Scope of delivery
- pre-wired, incl. 1.5 meters of power cable H05 RNF, with plug and on/off switch
| Application: | Supply |
|---|---|
| Features: | Ein- / Aus- Schalter |
| Frequency: | 50 |
| Head up to [m]: | 50.0 |
| Installation location: | inside buildings, portable |
| Max. flow rate [m³/h]: | 3.6 |
| Max. temperature [°C]: | 40 |
| Nominal current [A]: | 5.2 |
| Packing (WxHxL): | 210 x 350 x 400 |
| Power P1 [W]: | 1000 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2900 |
| Voltage [V]: | 230 |
| C [µF]: | 20 |
