Drainprofi B 180 230 V
Drainprofi B 180 230 V
Product number:
16933
Drainprofi B 180 230 V
Product number:
16933
- Particularly robust submersible pump made of stainless steel

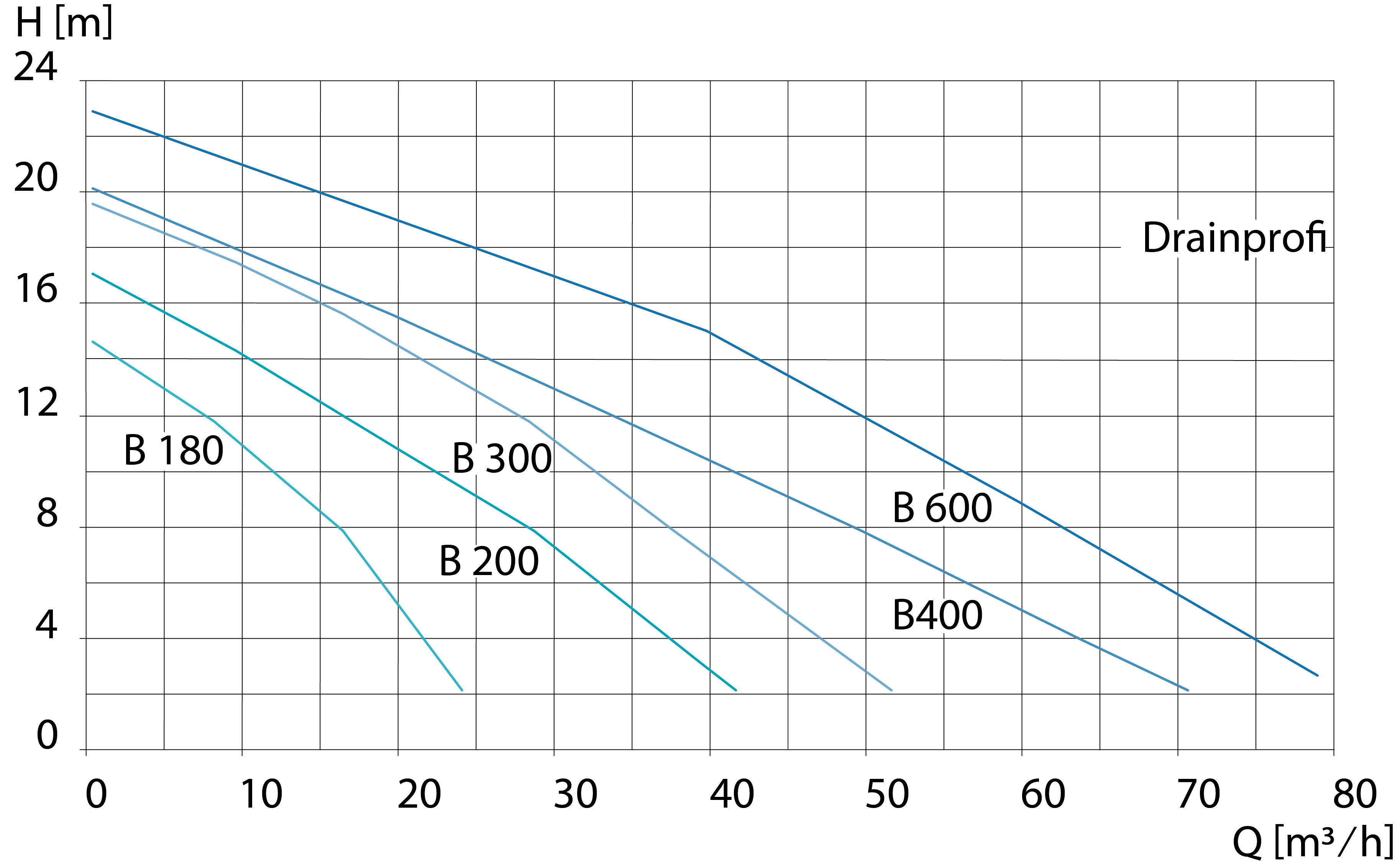

- Max. flow rate: 25,0 m³/h
- Max. head: 15,0 m
- Input power P1: 2.200 W
- Output power P2: 1.100 W
- Solids handling: 10 mm
- Pressure outlet: 3" internal thread / Storz coupling type B
Model
- robust submersible motor pump for construction sites
- end face mechanical seal in oil bath on the motor side
- immersion depth 5 m
Application
- for private purposes and municipal applications
- for keeping construction pits dry
- Application in fountains etc.
- for waste water with light and abrasive contaminations
Scpoe of delivery
- including. Storz-coupling, type „C“
- with float switch, starter, capacitor and thermal protection
- including connecting cable H07RN-F, 10 m long
| Features: | mit Schwimmerschalter |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 15.0, 25.0 |
| Nominal current [A]: | 9.5 |
| Packing (WxHxL): | 370 x 260 x 650 |
| Power P1 [W]: | 2200 |
| Power P2 [W]: | 1100 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 10, 30 |
